Tuesday, October 6, 2015

Two ADB Commands - dump system and the user dictionary

I have been doing a lot of Android eval work lately, and hunted for quite some time to find two nuggets of helpful information. Thought I'd write something up quickly so I have them for later.

System Package

The system package includes a ton of great configuration information, including a list of all intents and activities (by app) as well as a list of SecretCodeReceivers (keypad number combinations which, when dialed, result in an action occuring).

To get the system package, do the following:
  1. Open an ADB shell instance
  2. Navigate to a writable directory (/sdscard/Downloads works great)
  3. Enter the command adb dump system package > package.txt
  4. Exit the shell
  5. Pull the file you just created adb pull /sdcard/Downloads/package.txt
Now you have a ton of great system-wide info at your hands.

User Dictionary

Each device has a dictionary where custom words are stored. It's a SQLite database, located at /data/data/com.android.providers.userdictionary/databases/user_dict.db Just pull the file, open it in SQLite, and check out things the user has entered.

I remembered this while I was looking for the type-ahead cache. I still haven't found that.

Tuesday, November 4, 2014

SDR Dongle and APRS with GQRX on Kali

I just upgraded my pen test machine to Kali Linux (Ubuntu was getting heavy and slow). I discovered Kali has a great collection of SDR tools and, since I have both a receive-only SDR dongle AND a HackRF platform, I thought it would be interesting to see if I can receive and decode APRS packets. Today's experiment was using GQRX, which is a user-friendly UI-based SDR utility. Here's how I did it.

  1. I may have installed GQRX from the Applications/System Tools/Add Remove Software utility. I can't remember; I added a ton of stuff.
  2. Plugged in my SDR dongle with an antenna connected
  3. Opened GQRX
  4. Set the frequency to 144.390 (US frequency for APRS)
  5. Opened the AFSK1200 decoder
And... nothing. I could hear the packets on my HT, I could see the transmission on GQRX's waterfall, but AFSK1200 Decoder wasn't receiving anything. I poked around for 20 min on the Internet. Then on a whim I switched the filter from "Normal" to "Wide" and voila! APRS packets are being decoded:


This is great, as I'm getting a "radio on a chip" in a day or two, to use with Arduino  for a rocketry/balloon telemetry package. Now I can test decoding my APRS packets.

Next up: using HackRF to decode - and then to encode - APRS packets.

Monday, October 13, 2014

Building and Using Mac-Robber on Android

My Android assessments often see users scattering files across the device. It can be tough to track all those files down, so I often resort to using mac-robber to track file system changes. What is mac-robber? It's a tool that walks the file system to determine timestamps (create and modify) for all files on your device. As such, you cannot run mac-robber unless you have a rooted device (it needs access to the full file system). See my other blog posts on rooting your Android device.

Compiling and Installing mac-robber on Android

You can learn more about mac-robber for Android and iOS here. Note that, in Sawyer's article he includes the following instruction for compiling. This is incorrect:
  arm-linux-gnueabi-gcc -static -o -mac-robber mac-robber.c
The - before mac-robber is unneccesary. The correct command is
  arm-linux-gnueabi-gcc -static -o mac-robber mac-robber.c
  1. First step is to download the source files from http://www.sleuthkit.org/mac-robber/download.php.
  2. Next, add a repo so you can cross-compile mac-robber onto the Android platform:
    sudo add-apt-repository ppa:linaro-maintainers/toolchain
  3. Next, install the GNU compiler:
    sudo apt-get install gcc-arm-linux-gnueabi
  4. Finally, compile the source:
    arm-linux-gnueabi-gcc -static -o mac-robber mac-robber.c
Now that you have it compiled, you need to push the app to your device over ADB. Run the following commands to create a mac-robber app directory, change permissions on the directory, and push mac-robber to the device. The final step verifies to you the status of mac-robber.

john@joe:~/macrobber$ adb shell
root@flo:/ # mkdir /data/mac-robber
root@flo:/ # chmod 755 /data/mac-robber
root@flo:/ # exit
john@joe:~/macrobber$ adb push mac-robber /data/mac-robber
3557 KB/s (603897 bytes in 0.165s)
john@joe:~/macrobber$ adb shell "/data/mac-robber/mac-robber -V"
mac-robber information:
   version: 1.02
   author: Brian Carrier
   url: http://www.sleuthkit.org
john@joe:~/macrobber$

This is the end of the really difficult part of the process.

Running mac-robber

Next, do whatever you're going to do with your test (I generally boot and use my application for a bit, to exercise all of its functionality). This generates a good amount of data - the more functionality you use, the mor./configuree accurate your results will be.

This commands executes mac-robber and covers the entire device:

adb shell "/data/mac-robber/mac-robber /" >attachmentopen.body

This may be more data then you need, but I find it's good to be thorough, at least until you understand the device.

OK - now you have a huge file full of timestamps. How do you interpret it? Easy - use mac-robber's companion, mactime, to scan the file and generate a time-ordered file.

Interpreting the Results

Mac-robber outputs a long text file with file change history. You'd think you could import that into mactime, but the default mactime outputs binary format, so you'll need Sleuthkit's mactime perl script if you want to do anything with the output. To use that:
  1. Download the sleuthkit from http://www.sleuthkit.org/sleuthkit/download.php
  2. CD into the extracted sleuthkit
  3. Build the sleuthkit. Note: I skipped the last step (sudo install) simply because I didn't want to run the risk of clobbering my OS's mactime with the sleuthkit's version
  4. ./configure
  5. ./make
  6. Copy "mactime" into your mac-robber directory
Now that you have a mactime app, running it's pretty simple: just run this command:

mactime -b attachmentopen.body > android.timeline

If you want to constrain to a given start date, run this command:

mactime -b attachmentopen.body 2014-01-01 > android.txt

If you're looking for data about a particular app, you can use grep to grep the output file, like this:

grep -i 'facebook' android.txt > facebook.txt

Happy sleuthing!

Friday, September 26, 2014

Ubertooth - building and using

I'm working on a pen test for a client, which includes some bluetooth signal analysis. I decided to go a step above and actually do some ubertooth work--and immediately found myself in over my head. My first step was to buy a HackRF device, hoping I could use it for several purposes but soon discovered that the ubertooth tools aren't built for HackRF platform. After a good week beating on that, I gave up and had the Hak5 folks overnight me an Ubertooth.

I have followed the Ubertooth build guide to a T, but when I plugged in my ubertooth and tried to use the Spectrum Analyzer (as described in the Getting Started Guide), I encountered problems.

FeedGnuPlot

My first problem was:

jo@ubuntubox:~/ubertooth/ubertooth-2014-02-R2/host/ubertooth-tools$ ubertooth-specan -G -q | feedgnuplot --stream 0.5 --domain --3d
The program 'feedgnuplot' is currently not installed. You can install it by typing:
sudo apt-get install feedgnuplot
ubertooth-specan: command not found

Yah, oops - that's an easy fix:

jo@ubuntubox:~$ sudo apt-get install feedgnuplot
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following extra packages will be installed:
  aglfn gnuplot-qt
Suggested packages:
  gnuplot-doc
The following NEW packages will be installed:
  aglfn feedgnuplot gnuplot-qt
0 upgraded, 3 newly installed, 0 to remove and 0 not upgraded.
Need to get 1,014 kB of archives.
After this operation, 3,354 kB of additional disk space will be used.
Do you want to continue? [Y/n] y

BTBB CMake Error

The next error I got was at the bottom of the first set of command text above, also here:

ubertooth-specan: command not found

Hmm. CD'ing into the tools folder I realized duh - I hadn't build the tools yet. So the timeless march begins:

mkdir build
cd build
cmake ..
make
sudo make install

But wait, error!

jo@ubuntubox:~/ubertooth/ubertooth-2014-02-R2/host/ubertooth-tools/build$ cmake ..-- The C compiler identification is GNU 4.8.2
-- Check for working C compiler: /usr/bin/cc
-- Check for working C compiler: /usr/bin/cc -- works
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
CMake Error at src/CMakeLists.txt:24 (find_package):
  By not providing "FindBTBB.cmake" in CMAKE_MODULE_PATH this project has
  asked CMake to find a package configuration file provided by "BTBB", but
  CMake did not find one.

  Could not find a package configuration file provided by "BTBB" with any of
  the following names:

    BTBBConfig.cmake
    btbb-config.cmake

  Add the installation prefix of "BTBB" to CMAKE_PREFIX_PATH or set
  "BTBB_DIR" to a directory containing one of the above files.  If "BTBB"
  provides a separate development package or SDK, be sure it has been
  installed.


CMake Warning (dev) in CMakeLists.txt:
  No cmake_minimum_required command is present.  A line of code such as

    cmake_minimum_required(VERSION 2.8)

  should be added at the top of the file.  The version specified may be lower
  if you wish to support older CMake versions for this project.  For more
  information run "cmake --help-policy CMP0000".
This warning is for project developers.  Use -Wno-dev to suppress it.

-- Configuring incomplete, errors occurred!
See also "/home/jo/ubertooth/ubertooth-2014-02-R2/host/ubertooth-tools/build/CMakeFiles/CMakeOutput.log".

What the...?

This took some research, but I finally found the following comment from Govind-mukundan on the GreatScott Github issues discussion:

Thanks a lot for your information (I'm a bluetooth noob so have lots of reading up to do). I'll try to do some more tests tomorrow and add the capture. I also have some BLE devices and I'm curious to see them in action.
To add on the build requirements - in the setup guide it's mentioned that to install the wireshark plugin you should run:
$ cmake -DCMAKE_INSTALL_LIBDIR=/usr/lib/wireshark/libwireshark1/plugins ..
But this didn't work for me (I couldn't find the btbb inside the wireshark filters). I tried both libwireshark1 and libwireshark3 folders. However the instructions inside the README at libbtbb/wireshark/plugins/btbb/ says that you should run
$ cmake .
That did work for me, perhaps this should be updated in the guide too? It's all quite confusing :)
This actually works!

ubertooth-specan

The Getting Started says to run "ubertooth-specan" as explained in the readme. When I tried the read-me's command line, I kept getting errors:

jo@ubuntubox:~/ubertooth/ubertooth-2014-02-R2/host/ubertooth-tools$ ubertooth-specan -G -q | feedgnuplot --stream 0.5 --domain --3d
ubertooth-specan: command not found

After building and rebuilding I realized - there is no ubertooth-specan. The tool is ubertooth-specan-ui! So I modified the command and voila - another error!

jo@ubuntubox:~/ubertooth/ubertooth-2014-02-R2/host/ubertooth-tools$ ubertooth-specan-ui -G -q | feedgnuplot --stream 0.5 --domain --3d
Traceback (most recent call last):
  File "/usr/local/bin/ubertooth-specan-ui", line 260, in <module>
    window = Window()
  File "/usr/local/bin/ubertooth-specan-ui", line 227, in __init__
    self._device = self._open_device()
  File "/usr/local/bin/ubertooth-specan-ui", line 250, in _open_device
    return Ubertooth(device)
  File "/usr/local/lib/python2.7/dist-packages/specan/Ubertooth.py", line 38, in __init__
    self._device.set_configuration()
  File "/usr/local/lib/python2.7/dist-packages/usb/core.py", line 559, in set_configuration
    self._ctx.managed_set_configuration(self, configuration)
  File "/usr/local/lib/python2.7/dist-packages/usb/core.py", line 91, in managed_set_configuration
    self.managed_open()
  File "/usr/local/lib/python2.7/dist-packages/usb/core.py", line 70, in managed_open
    self.handle = self.backend.open_device(self.dev)
  File "/usr/local/lib/python2.7/dist-packages/usb/backend/libusb1.py", line 733, in open_device
    return _DeviceHandle(dev)
  File "/usr/local/lib/python2.7/dist-packages/usb/backend/libusb1.py", line 618, in __init__
    _check(_lib.libusb_open(self.devid, byref(self.handle)))
  File "/usr/local/lib/python2.7/dist-packages/usb/backend/libusb1.py", line 571, in _check
    raise USBError(_str_error[ret], ret, _libusb_errno[ret])
usb.core.USBError: [Errno 13] Access denied (insufficient permissions)

Well, alright, this one is easy - USB permissions. The readme talks about a few fixes that I haven't implemented yet - I simply ran the same command as sudo and voila for real - introducing "Ubertooth Spectrum Analyzer"


I am happily seeing 2.4 gHz spectrum.

Friday, September 19, 2014

Flipping the “Production” bit on a Nexus 7

As a security researcher, I’m constantly battling the lack of access on my retail Nexus 7. I spent about 12 hours today messing with this, rooting the device and modifying boot images. Each time, my device would get stuck in a “soft-brick/bootloop’.

It was frustrating.

I followed every step-by-step I could find, continuously modding the setting in build.prop but to no avail. Funny enough – the trick I was using to root and recover my device is what ended up offering a solution!

Root Your Device, For Real

There are a number of roots out there, but none as good as “Nexus Root Toolkit’ by WugFresh. I was a little hesitant, but believe me – if you follow EVERY STEP (esp deleting and installing drivers) it works fantastic.

Run through the wizard. Follow the YouTube videos. A child can do this.


But Not Really

However, after you’ve rooted your device, you’re still in “Production” mode and you still can’t get root in shell. To accomplish that, you need to flip the production bit. But, as mentioned, I could never figure out how to flip the bit and then restore the boot image. Whenever I flashed the image back onto the device, it would go into a continuous reboot. At some point, however, I was poking around the Nexus Root Tooklit UI and saw the “Advanced Utilities” option to temporarily boot on an opened image.

I used it a couple times to see what was going on with my device – it would boot on the “modified boot image,” even when it wouldn’t boot on my slightly modified image. And when I adb shell’ed into the device, I had that wonderful root option!


It was only around hour 11.5 that I realized I could have flashed that image (their modified boot image) onto the boot partition, and my device would no longer be in production mode.

So it’s simple…

  • Launch NRT
  • Click “Advanced”
  • Under “Boot Flash Image,” switch the option from “Boot (Temporary)” to “Flash (Permanent)”
  • Select the modified boot image in the \data\modified boot image directory in the NRT install folder
  • Let it flash

Your device is now no longer in production mode – you can mount it as root:


Further Research

I’m sure I could simply flip that bit somehow, but I just haven’t figured out how. After a full 12 hours (on top of an 8-hour work day), I decided to just move on. Anyone with better ideas – leave a comment!

Saturday, September 6, 2014

WiFi Pineapple Radios

I've been slowly poking away trying to figure out definitively which antenna/radio corresponds (by default) to which WLAN. The support forums don't have much information, so I spent an hour or so today searching the web for info. I finally have it figured it, I believe.

Looking at front w/antennas on bottom:

Light Radio radio   wlan# Location
Blue AR9331 radio0  wlan0 Lower right by SD card
Red RTL8187 radio1  wlan1 Lower left near dip switches

Some of this info came from https://forums.hak5.org/index.php?/topic/33485-physically-what-is-the-wlan0wlan1-antenna/?hl=%2Bwhich+%2Bantenna

Typically WLAN0 is the access point clients connect to (the access point) and WLAN1 is the NIC used to connect to another wireless network. Why is this important?

  1. If you're trying to lure users to connect to your pineapple, having a high-gain antenna connected to WLAN0 would be helpful. That's the blue antenna, AR9331 radio, lower right by the SD card.
  2. If you're trying to connect/assess remote wireless networks (say with a Yagi directional antenna) connecting your antenna to WLAN1 would be helpful. That's the red antenna, lower left near the dip switches.
There was apparently at some point a problem with radios switching, but it seems that problem has been addressed (it was back in Sept 2013).

You can confirm this by connecting to your Wifi Pineapple over SSH:


root@Pineapple:/# cat /etc/config/wireless

config wifi-device 'radio0'
option type 'mac80211'
option channel '11'
option hwmode '11ng'
option macaddr '00:13:37:##:##:##'
option htmode 'HT20'
list ht_capab 'SHORT-GI-20'
list ht_capab 'SHORT-GI-40'
list ht_capab 'RX-STBC1'
list ht_capab 'DSSS_CCK-40'

config wifi-iface
option device 'radio0'
option network 'lan'
option mode 'ap'
option ssid 'Pineapple5_2342'
option encryption 'none'

config wifi-device 'radio1'
option type 'mac80211'
option hwmode '11g'
option macaddr '00:13:37:93:58:d2'
option channel '5'

config wifi-iface
option device 'radio1'
option mode 'sta'
option network 'wan'
option ssid 'HOME-8858'
option key 'Sn1ckers'
option encryption 'psk2+ccmp'

Note on MAC addresses:
  • 00:11:37 is associated with "Orient Power Home Network Ltd (this is radio0, the AR9331)
  • 00:13:37 is also associated with "Orient Power Home Network Ltd" (this is radio1, the RTL8187)

Thursday, September 4, 2014

WarPi–The Build

In my other blog post, I documented the stop/start challenge I had building a War Pi. Now that all the equipment is ready, it’s time to actually start building. I’ve picked up a number of tips and tricks along the way, and I’ll be documenting them here.

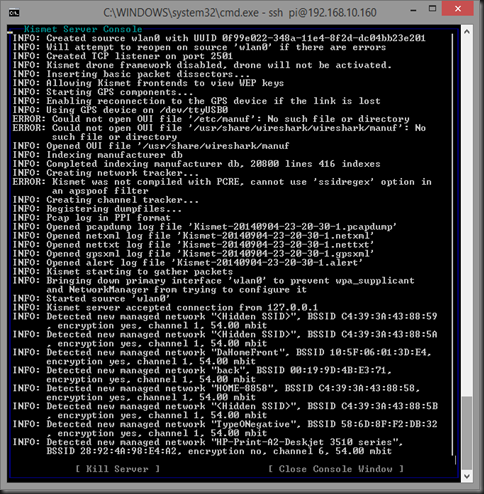

The War Pi is a Raspberry Pi project running Kismet, with GPS enabled. The project is a SANS Gold Paper project by Scott Christie; you can read the paper here. For the WarPi to work “mobile”, you need the following:
  • Raspberry Pi
  • SD Card (4 GB or larger)
  • Alfa wireless network adapter
  • USB GPS
  • USB battery pack
  • Misc USB cables
Here’s my setup:
WP_20140904_001

Operating System

The first step was choosing from the several options for operating systems. The folks at RaspberryPi.org are awesome about building, updating and releasing operating systems (you can find them here). I chose Raspbian because it is the most common OS, and because it was the base OS for the WarPi build. There’s potentially a reason to go with one of the OS’s (for instances, Arch Linux), to have a smaller kernel and such. For the purpose of this project, sticking with the norm is probably the best solution.

Configuring the OS

I’ve written a longer blog on how to image, update, upgrade, and reimage the Raspberry Pi operating system, you can read it here. These are the steps I took to get to my current base image.

Customizing the Hostname

My base image includes SSH server running at startup, so I can get logged in whenever it’s live on a network. One thing I like to do is customize my hostname—in this case, it’ll be “WarPi”. Some people recommend a stealthier name, but given that the WarPi will only be used for client engagements, I want to be completely transparent.
There’s a nice article on the steps to accomplish this. You can read it here.

Expanding Filesystem

Scott Christie’s article calls for expanding the file system as a first step. I don’t do this, because once the system is built I want to image it back off. If I expand the file system, my image will be quite large (my card is 6 GB). So I’ll hold off until all the apps are installed and working.
Next: build the WarPi.

Installing Applications

Scott Christie’s WarPi build follows these steps:
  1. Install and configure GPSD (the GPS Daemon)
  2. Install and configure Kismet
  3. Auto-start Kismet

GPSD – The Good, the Bad, the Ugly

In my initial efforts to build a WarPi, I was using an older Microsoft Streets and Trips GPS device. My early proof of concept was just using it with minicom to review serial communications – that worked fine and I blogged a bit about it. When I combined GPSD and my old GPS unit, however, I ran into trouble and learned a lot about debugging GPS units. Unfortunately, it appears GPSD fried my old SiRF GPS unit – even though I’ve got it back to NMEA mode, the unit cannot get a GPS fix anymore. So I’m understandably wary of GPSD. In some testing I did the other day, I discovered that Kismet works fine with my new GPS unit in NMEA mode over serial, so my plan now is to skip the GPSD installation and let Kismet speak serial/NMEA to the GPS.
Therefore, my build steps will be:
  1. Test the GPS
  2. Install and configure Kismet for serial NMEA GPS
  3. Test Kismet with the GPS
  4. Auto-start Kismet

Step 1: Testing the GPS

Install Minicom

Minicom is a great little serial tool, but it doesn’t come preinstalled in the OS, so we’ll be installing that prior to using the GPS. Simple:
sudo apt-get install minicom
And voila – you have minicom installed! To make sure it works, enter the following:
sudo minicom –s
And the minicom app will start at the settings screen:
Just choose “Exit from Minicom” by arrowing down—we have to get the GPS working before we can use minicom.

Connect the GPS

When you connect the GPS over USB, the sudden change in power can cause your Pi to restart. The best strategy is to shut down your Pi, connect the GPS, and then power up.
Once the system boots, you’ll need to discover your GPS’s “location” in the system. Type the dmesg command and scroll through the output looking for “USB-Serial” or such. Eventually you’ll see a series of entries for the GPS, ending in “pl2303 converter now attached to ttyUSB0” or something similar, as highlighted below:
ttyusb0
Now you’re ready to use minicom to view NMEA strings coming from the GPS. Type:
sudo minicom –s
to enter the settings screen. Let’s get going!
  1. First select “Serial Port Setup” by mousing down to it and pressing the Enter key.
  2. Next, press the “A” key, then backspace and edit the entry to read /dev/ttyUSB0 (or wherever your GPS unit ended up). Then press “Enter” to set your changes.

    NOTE: the location for your GPS is case sensitive!

  3. Now we need to modify the serial communications settings. Press “E” to open the Comm Parameters menu:
  4. Press “B” until the Current comm speed is 4800:
  5. Make sure the “Current” reads 4800 8N1 as above. If it doesn’t, press “Q” to set the second half of the string.
  6. Once the settings are correct, press “Enter” to exit each screen (two times).
  7. Now arrow down to “Save setup as dfl” and press “Enter
  8. Next, arrow down to “Exit” and press “Enter”. You will drop directly into minicom and see NMEA strings pass by…
    minicom
    The big white box is an attempt to anonymize my location.
  9. To close out of minicom, press “Ctrl+A” then press “Q” and choose to leave without reset.

Installing Kismet

It’s actually not an “install” per-say, but a download and build. Christie’s instructions are still accurate – the link is correct as of September 2014, and the instruction steps are all accurate. I’ll summarize:
  1. First perform the wget command to download the source.
  2. Next, install the dependencies as documented
  3. Then extract the source
  4. Then prepare the code to compile and install
  5. Finally, make and install Kismet
The make part… That takes a long time. Be patient—go for a walk with the dog, spend time with family, etc.

UPDATE: 03/2016
NOTE that there is a bug in Kismet, so it places access points all over the antarctic. Not kidding. See this Kismet forum article for details on how to fix it (you're going to have to modify code).

If you look for the K7JTO repository on Github, you can download the updated Kismet files, or just hand-fix them yourself.

Configuring WLAN0 Out

By default, Raspbian wants to hot-plug and use a wireless device as much as it does an ethernet device. Kismet however wants full access to the WLAN device, so it will squawk at you:
I poked around quite a bit, but ultimately fixed this by editing /etc/default/ifplugd and changing the line INTERFACES=”auto” to “INTERFACES=”eth0”
This instructs ifplugd to only look at eth0 to autoconfig, and not to the WLAN. Inconvenient if I actually want it to auto-configure a WLAN connection, but I actually don’t want it to. Kismet needs full control of wlan0.

Smoke Test

This is a good time to make sure Kismet is working. It’s simple – just type
sudo kismet
If it’s working, you’ll get a bunch of prompts as recorded in the whitepaper. Eventually you’ll see the Kismet server logs, which will look like this:
Pressing the Tab key will highlight the “Close Console Window” and take you to the Kismet interface, which will look like this:
kismet
(GPS coordinates blanked out)
If you’ve gotten this far, you are golden – configure Kismet to auto-start and to log output and you have a WarPi. Congrats!
From this point on, you can follow the WarPi directions in the article and everything should go just fine. NOTE that you might want to use dd again to make a base WarPi image so you don’t have to go through all of this again if your card dies or something.
